Transfer Pad Silicone

Product introduction

1.Transfer Printing Pad Silicone Description:

Pad printing silicone rubber is rtv2 silicone, also called two components silicone or two parts silicone, part A and B will vulcanize in room temperature when A and B mixed.
The mix ratio of tin cure silicone is 100:3, the platinum cure silicone is 1A:1.

2.Transfer Printing Silicone Application

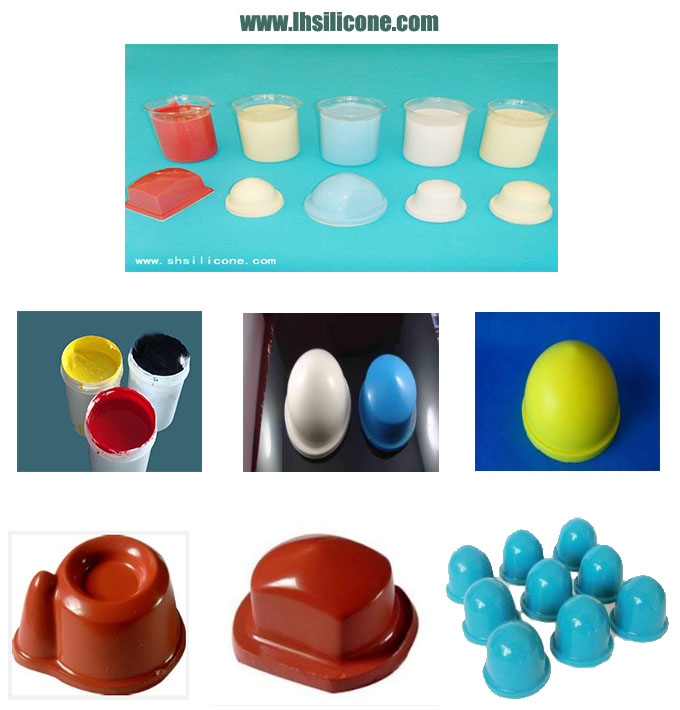

Pad printing silicone rubber is specially used to making printing pads, tampo pads for transfer patterns and contents to the ceramics, plastic, electroplated products and so on,such as toys, ceramic tableware etc.



3.Transfer Printing Silicone Advantages
1)The liquid silicone very delicate without any impurities or particles.
2)Excellent resilience, flexible
3)Durable, the printing times can reach up 10000 times
4)Good oil absorption effect
5)The pattern is printed with great clarity and completeness.
6)Keep good quality even though 200%-300% silicone oil added


4.Transfer Printing  Silicone TECHNICAL DATA SHEET:

Model

Viscosity
 (cps)

Hardness
 (A°)

Tensile
Strength
(kgf/c㎡)

Tear
Strength
(kn/m)

Elongation
(≥%)

Mixing
ratio

Operating
Time(min)

Curing
Time(Min, 25℃)

LHSIL PAD 803

22000

30

5

30

≥310

2~5 %

30~60

3~5

 Note: Above technical datasheet of two parts silicone  it's adjustable according to customer's requirements.

5.Transfer Printing Silicone INSTRUCTION:

Transfer Printing Silicone is a kind of white (colors adjusable) flowing liquid.

6.Transfer Printing Silicone PACKAGE:

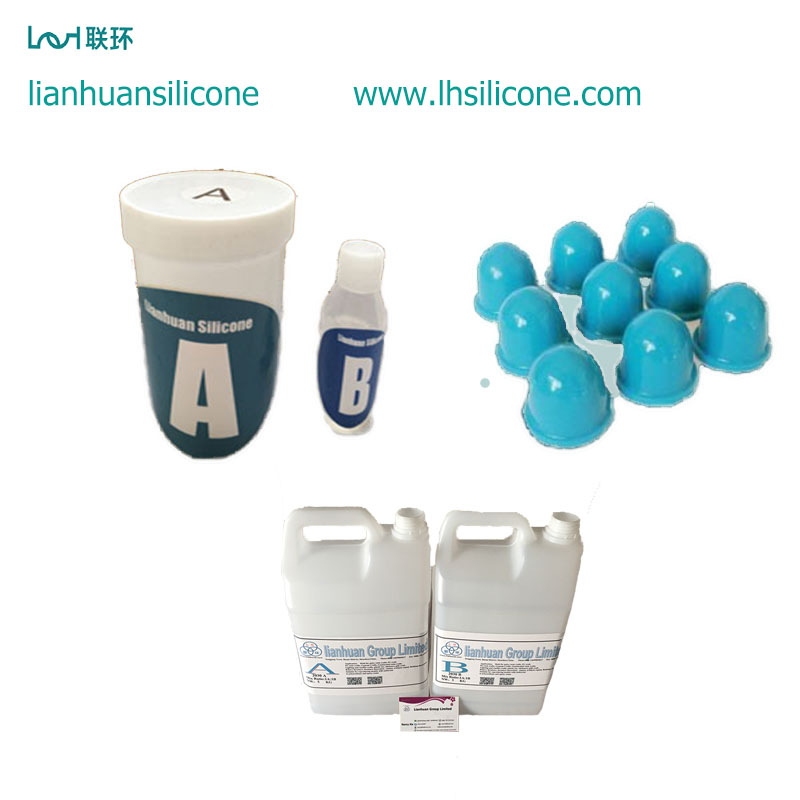

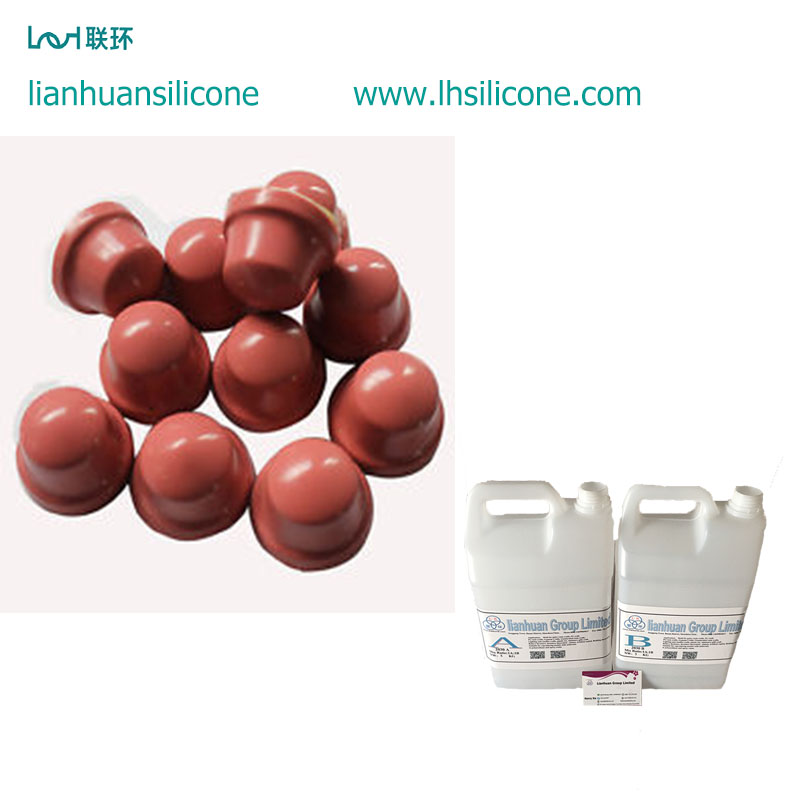

25KG/drum vacuum packing for part A +1kg/ bottle catalyst for part B
200KG/drum packing for part A +1kg/ bottle catalyst for part B

Note: 1kg/jar, 5kgs/drum, 20kgs/drum, 25kgs/drum, 200kgs/drum and vacuum package is available.

Contact Lianhuan:

SHENZHEN LIANHUAN SILICONE CO.,LTD
Email: nancy@lhsilicone.com

Skype: nancyxie2007

WeChat: 0086 13699849627

Ms Nancy Cell/WhatsApp: +86 13699849627

Product use

Product Name:Transfer Pad  Silicone

Product Style: LHSIL PAD

Brand: Lianhuan silicone

Printing Pad Mold Making Silicone usage:

 For surface printing of plastic and hardware products.
