Clear Water potting Silicone

Product introduction

 Applications of Clear  water potting Silicone

Applying for the surface of PC (Poly-carbonate), PP, ABS, PVC, Metal, etc.
Outdoor protection for LED screen
 Insulation, waterproof and bonding of general electronic components

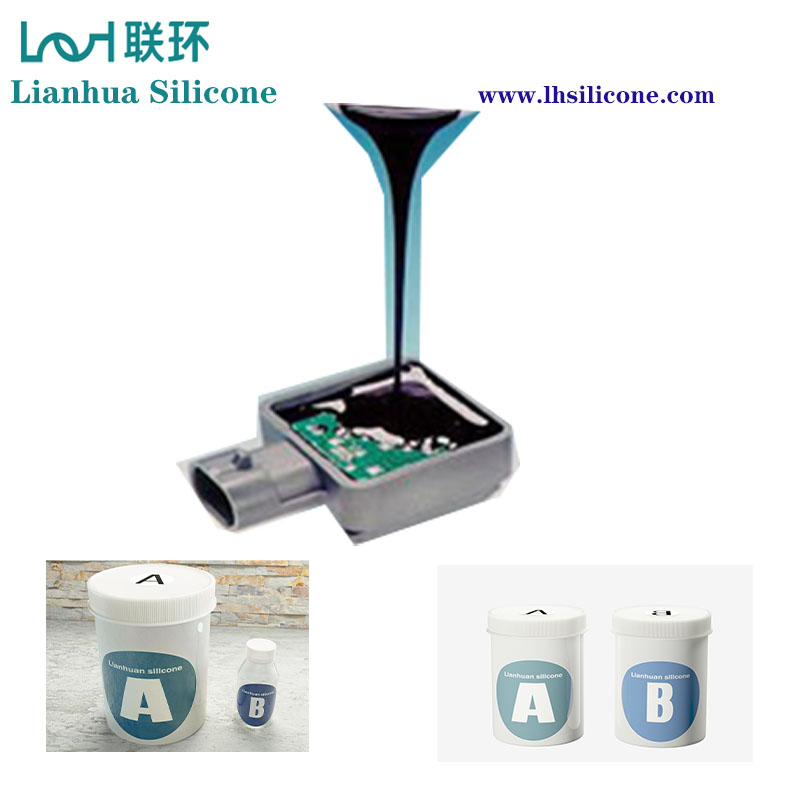

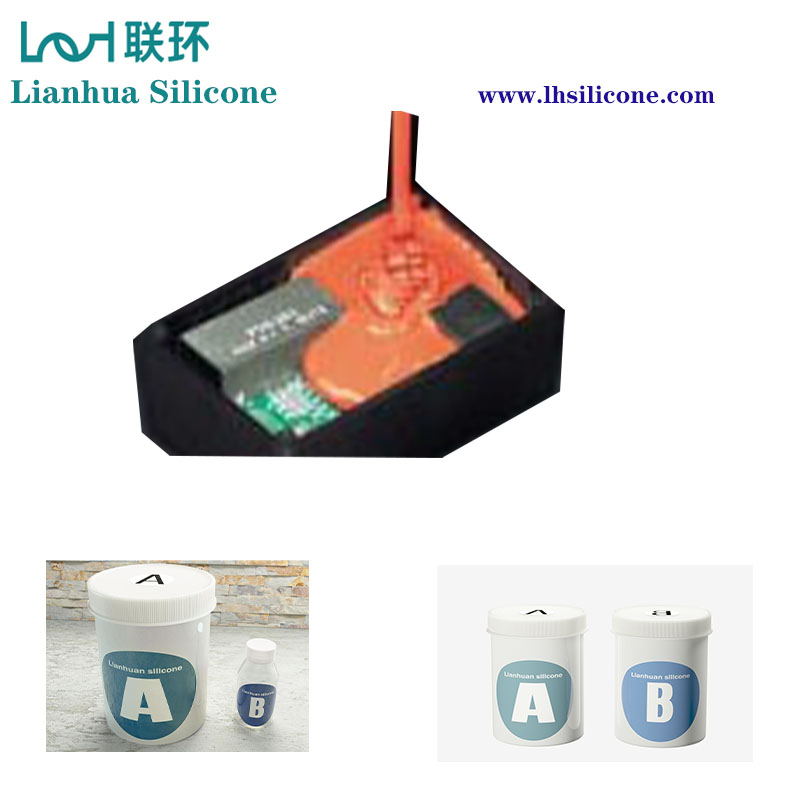

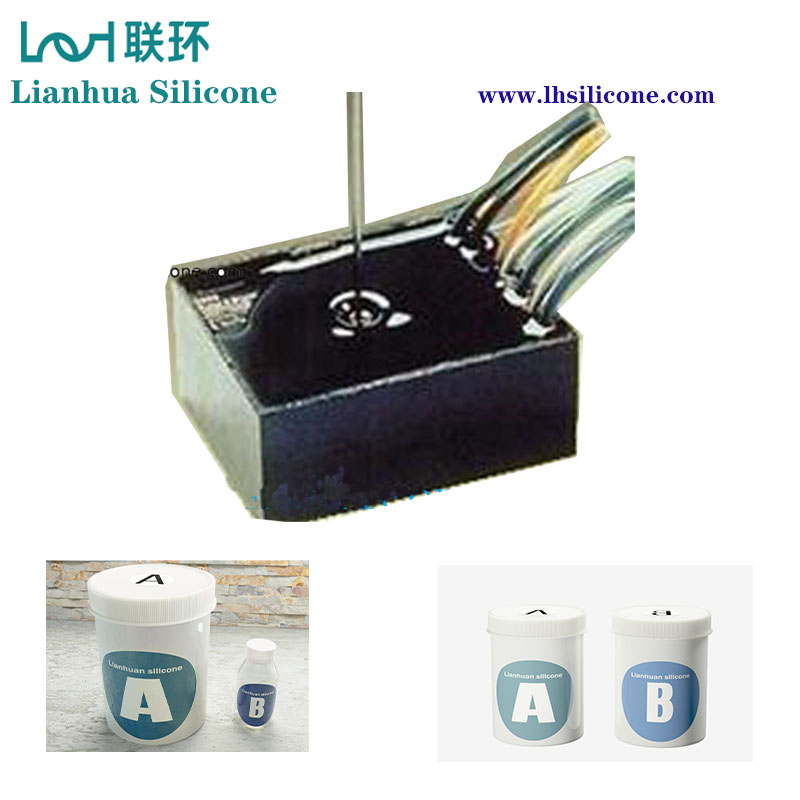

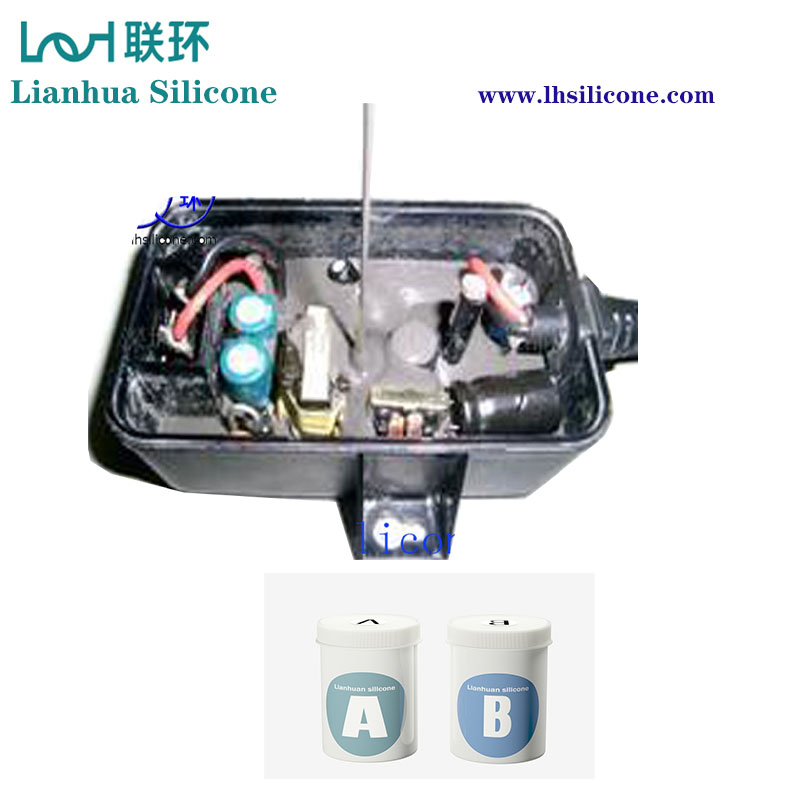

Filling for LED, LCD electronic display, circuit board, PCB substrate, etc.
High powered electronic encapsulation and DC/DC module and

circuit board which requires heat dissipation and high temperature resistance.


Features of clear water Potting Silicone

Low viscosity permits excellent potting
Trans
parent appearance
No reactive by-products-no con- cerns regarding corrosion
Cure rate can be accelerated by heat
Excellent resistance to temperature extremes
Excellent electrical properties


Technical Date sheet of clear water Potting Silicone

Appearance

LHSIL2018

Before

Cured

Appearance

Clear / White/black/Any

A Partcps25

2000

B Part cps25

800

Mixed Ratioby WeightAB

100:5

Mixed Viscositycps

1500

Pot life(min,25)

30

Cured time min25

2hours

Cured timemin80

 2hours

After cured

Hardness(shore A)

25

Usage Temperature(

-50+300


Process Instructionof clear water potting Silicone

Pre-Mix Parts A and B - Shake containers vigorously before using to re-disperse material that may have separated. If material is packaged in buckets, remove lid and pre-mix aggressively with a paint stick or mixing paddle. Dispense 100 Part A and 5 Part B by volume into mixing container. Mix thoroughly for at least five minutes, making absolutely sure that you scrape the sides and bottom of your container several times. Material appears cloudy when first mixed, but will clear after a few minutes.


Package of  clear water potting Silicone
1kg/can, 5kg/can, 20kg/drum, 200kg/drum



Clear water potting Silicone Packaging & Shipping:
Sample packaging: 1kg
Cargo packaging: metal drum and plastic drum:5kg 20kg, 25kg and 200kg
Shippping: Transport as non-dangerous Article

Product use

Product NameClear water Potting Silicone

Product Style.: LHSIL 2018

Brand: Lianhuan silicone

Clear water Potting Silicone usage:

Applying for the surface of PC (Poly-carbonate), PP, ABS, PVC, Metal, etc.
Outdoor protection for LED screen
 Insulation, waterproof and bonding of general electronic components
Filling for LED, LCD electronic display, circuit board, PCB substrate, etc.
High powered electronic encapsulation and DC/DC module and

circuit board which requires heat dissipation and high temperature resistance.
